CVO-5 Vacuum Oven

Category Vacuum Ovens
Manufacturer Cascade
Overview

Cascade Sciences offers the CVO-5 Vacuum Oven that has incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries, or any temperature sensitive material. This vacuum oven liberates solvents, water, and other unwanted compounds. It’s ideal for small batch, R&D and laboratory environments.

Operating Range: Ambient +26°F to 302°F / Ambient +14.4°C to 150°C



Features:

  • NRTL Certified by TUV
  • 5 each adjustable shelves
  • Stable temperature control. Digital temperature readout with temp sensor INSIDE the oven
  • Bright LED lights in window for visibility of sensitive material
  • Touchscreen LED Control Panel with adjustable settings
  • Smooth, quarter-turn vacuum and vent valves
  • Energize vacuum pump from control panel
  • Rear KF-25 port allows for rapid MAXEVAP purging or running feedthroughs inside oven for monitoring
  • 120V or 220V power options are available
  • Stainless Steel option available
  • Quality Tempered Rated Glass NGI-US to ANSI Z97.1.2007 156CFR/201 11 SGCC -2577 ½ UA
  • Adjustable leveling feet insure your unit sits solid and level in the workspace
  • Made in USA

    Need A Complete CVO-5 Vacuum Package?

    Cascade has taken the guess work out of pairing the right vacuum oven with the proper pump.

    • CVO-5 Standard Package is a benchtop workhorse. The 5 cubic ft vacuum oven is connected to the oil-free Welch 2052B-01 diaphragm pump. The vacuum pump interior is made of solvent resistant, PTFE diaphragms.The CVO-5 vacuum oven offers incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries, or any temperature sensitive material. Both oven and pump can run off a single dedicated 120V / 1ph / 20 AMP circuit.

    • CVO-5 PRO Package oven offers incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries, or any temperature sensitive material. This vacuum oven will liberate solvents, water or other unwanted compounds in a small batch, R&D, laboratory environments. The CVO-5 PRO Package pairs our CVO-5 vacuum oven with the Agilent IDP7 5.4 cfm oil free scroll pump and our fast MAXEVAP connection kit. It’s an ideal benchtop set-up for high production vacuum drying or purging.

    • CVO-5 TURBO Vacuum Package is a complete 5 Cu ft benchtop vacuum drying system built for fast purging. The CVO-5 TURBO Package allows for the most capacity (8 shelves) and a very powerful, oil-free, quiet Agilent IDP15, 9cfm vacuum pump. Vacuum oven and pump are connected via MAXEVAP connection – giving outgassing material the largest exit path off the product and out of the oven. The MAXEVAP connection kit features a large 1″ diameter oven exit port, KF-25 lines and vacuum valve to reduce dry times.

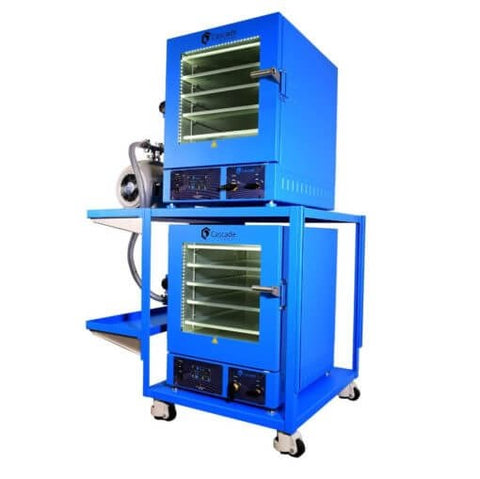

    • CVO-5 DOUBLE UP Vacuum Package is ideal for large volume production with the flexibility of small batch management, this complete vacuum drying system is self-contained in a minimal, easy to move, mobile foot print. Two CVO-5 vacuum ovens powered by a single Agilent IDP15 9 cfm oil free scroll pump is set-up for high production vacuum drying or purging with deep vacuum and large off gas loads.

    • CVO-5 DOUBLE UP Vacuum Package with MAXTRAP -105C Cold Trap is two Cascade CVO-5 vacuum ovens powered by a single Agilent IDP15 9 cfm oil free scroll pump is set-up for high throughput with deep vacuum and large off-gas loads. The MAXTRAP105 is a -105°C cold trap that extends time between pump maintenance and traps contaminants. The system components are NRTL Certified


      Key Attributes

      Max Temperature

      150°C

      Max Capacity

      4.5 cu ft

      Air Movement

      Vacuum

      Electrical

      110V – 120V / 1ph / 14A 50/60Hz
      Cord Included NEMA 5-15 Power Outlet

      220V – 240V / 1ph / 7A 50/60Hz Available
      Cord Included NEMA 6-15R Power Outlet

      Warranty 1 Year (Gaskets not included)



      Manufacturer Specifications

      VOLUME
      4.5 Cubic Ft. (127 Cubic Liters)

      SHELVING
      Includes 5 removable, adjustable (recommend 8 MAX)
      Surface Area: 18″W x 24″D
      Weight Capacity: 50 lbs (22.7Kg)
      Aluminum

      OVEN INTERIOR
      18”W x 24”D x 18”H
      457mm x 609mm x 457mm

      OVEN EXTERIOR
      25” W x 33.1” D x 33.1”H
      635mm x 841mm x 795mm

      WEIGHT
      360 lbs / 163.3 Kg

      TEMPERATURE RANGE
      Operating Range: Ambient +26°F to 302°F / Ambient +14.4°C to 150°C

      TEMPERATURE UNIFORMITY
      @ 105°F +/- 2.0°F
      @ 200°F +/- 3.6°F
      @ 300°F +/- 5.5°F

      @ 40°C +/- 1.0°C
      @ 90°C +/- 2.0°C
      @ 150°C +/- 3.0°C

      TEMPERATURE STABILITY
      @ 105°F +/- 0.2°F
      @ 200°F +/- 0.4°F
      @ 300°F +/- 0.2°F

      @ 40°C +/- 0.1°C
      @ 90°C +/- 0.2°C
      @ 150°C +/- 0.1°C

      HEAT UP FROM AMBIENT TO STABILIZATION TIME
      To 105°F (40°C) 60 minutes
      To 200°F (90°C) 126 minutes
      To 300°F (150°C) 180 minutes (170 minutes for 220V version)

      COOL DOWN TIME
      From 105°F (40°C) 345 minutes
      From 200°F (90°C) 285 minutes
      To 300°F (150°C) 335 minutes (460 minutes for 220V version)

      *Temperature performance specifications are preformed in empty ovens. Performance can vary in ovens containing product, ambient lab conditions.

      VACUUM VALVE
      ¼ Turn Lever

      VENT VALVE
      ¼ Turn Lever

      INTERIOR LIGHTING
      LED Strips (Rated to 150°C)

      GLASS WINDOW
      Tempered NGI-US to ANSI Z97.1.2007

      VACUUM GAUGE
      Digital, selectable to read in inches mercury (Hg) or torr, barr

      CONTROLLER
      Touch Screen
      Accurate Within 1°F
      Independent Overtemp Failsafe
      Easy updates with USB port

      PORTS (REAR)
      Vacuum = 3/8th Barb
      Vent = ¼” Barb
      Auxiliary KF-25 Port

      INERT GAS INTRODUCTION
      Yes. Via ¼” Vent Barb
      15 psi max inlet pressure

      POWER
      110V – 120V / 1ph / 14A 50/60Hz
      Cord Included
      NEMA 5-15 Power Outlet

      1105 BTU/hr
      Rating at max power

      220V – 240V / 1ph / 7A 50/60Hz Available
      Cord Included
      NEMA 6-15R Power Outlet

      1228 BTU/hr
      Rating at max power

      INCLUDED ACCESSORIES
      5 Shelves
      20 Clips
      4 Leveling Feet
      Power Cord

      DOOR GASKET
      18” x 18” Cured Silicone
      Temp Silicone rated to 446°F(230°C)

      SHIPPING DIMENSIONS
      41”L x 41”W x 45”H
      Class 85
      Shipping Weight: 449 lbs / 204 Kg

      CERTIFICATIONS
      ISO 9001
      NRTL TUV #U8 170464972 077
      CAN/CSA-C22.2 No. 61010-1:2012
      + UPD No. 1:2015-07 + UPD No. 2:2016-04
      CAN/CSA-C22.2 No. 61010-2-010:2015
      UL 61010-1:2012/R:2016-04
      UL 61010-2-010:2015
      EN 61010-1:2010
      EN 61010-2-010:2014

      WARRANTY
      1 Year (gaskets not included)
