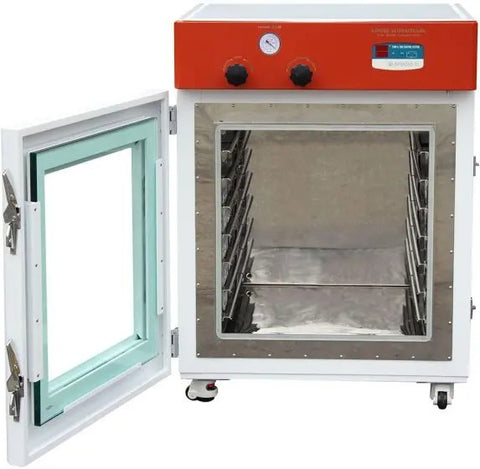

Ai E Series Oven

Category Vacuum Ovens
Manufacturer Across International

The E76 ELITE series digital vacuum ovens feature our 5-side chamber jacket heating system that covers left, right, up, down and backside of the chamber; all metal internal vacuum tubing (compare to rubber hose) for better vacuum levels and durability; and build-in secondary over-temp dial for enhanced over temperature protection. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber. Every one of our vacuum ovens goes through a 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.


  • Re-designed 5-side jacket heating system covers left, right, up, down and backside of the oven, it provides perfect temperature uniformity and fast heating rates.
  • All stainless steel internal vacuum tubing and compression fittings that holds vacuum 10 times longer and deeper than with rubber tubing. They also provide you the most sanitary working environment, while last for decades without maintenance.
  • Built-in secondary over-temp dial for added protection.
  • Exceptional build and finish quality.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • Adjustable gas back fill capability via vent port
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • Built-in swivel casters with locks for ultra portability.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery.
  • Guarantee US based phone and email assistance within 30 minutes (except holidays and weekends) from our engineers.
  • 2-year warranty and lifetime US-based parts and service support.

Attention: Before initial use, run oven at 400F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process. NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING.

Key Attributes

Max Temperature


Max Capacity

 7.6 cu ft

Air Movement



220V 50/60Hz single phase, 4500 watts

Warranty 1 year
Manufacturer Specifications
 Electrical requirements
 220V +/-10% 50/60Hz single phase 20.5A, 4500 watts
 No plug included, customer will need to install plug base on their power setup
 Temperature control  Controller: Low gain microcomputer PID control for heater output
 Temperature range: Ambient to 200°C
    UL units can only be certified up to 150°C
 Timer range: 0 to 99 hours 59 minutes
 Dimensions: 23.6 x 23.9 x 23.6"
 Capacity: 7.6 cubic foot (215 liters)
 Material: Polished heavy duty type 304 stainless steel
 Heating method: 5 sided heated jacket
 Dimensions (WxDxH)  Unit: 34 x 32 x 45"
 Shipping: 43.5 x 41.5 x 52"
 Weight  Unit: 620 Lbs
 Shipping: 880 Lbs
 Level: Better than 500 microns/millitorrs
 Vacuum port: KF25 flange
 Vent port: 3/8" hose barb
 Included: 7 aluminum slide-in shelves
 Shelf size: 23 x 23 inches
 Total area: 529 x 7 = 3703 inch2
 Distance between shelves: 3.25 inches
 Door gasket material  Silicone
 Safety  Built-in safety switch
 Circuit breaker
 Overheat protection
 Power failure auto reset
 Time up buzzer
 Observation window  1/2" tempered safety glass
